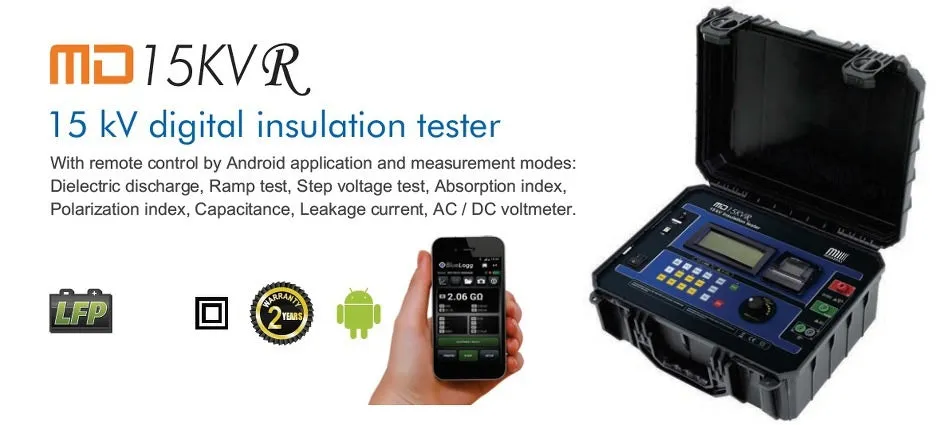

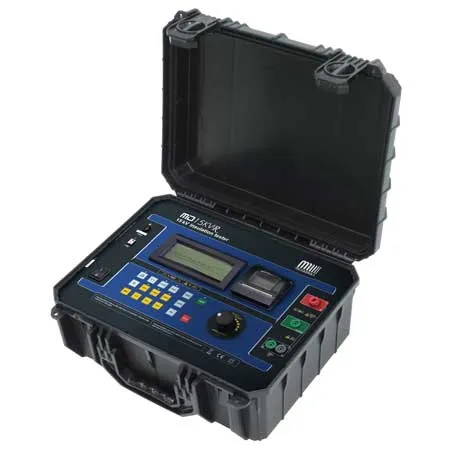

The digital insulation tester model MD-15KVR is Megabras' cutting edge insulation analyzer equipment and it is one of the most complete and sophisticated available in the international market. A powerful software allows for further analysis of tests results, including features such as graphical representation and automatic report generation. Its proven technology provides safe, reliable and accurate measurements of insulation resistances up to 15 TΩ, with 4 pre-selected test voltages, 500 V - 5 kV - 10 kV - 15 kV. Other test voltages may be selected in steps of 25 V, 100 V or 500 V.

Features:

• Insulation resistances up to 15 TΩ

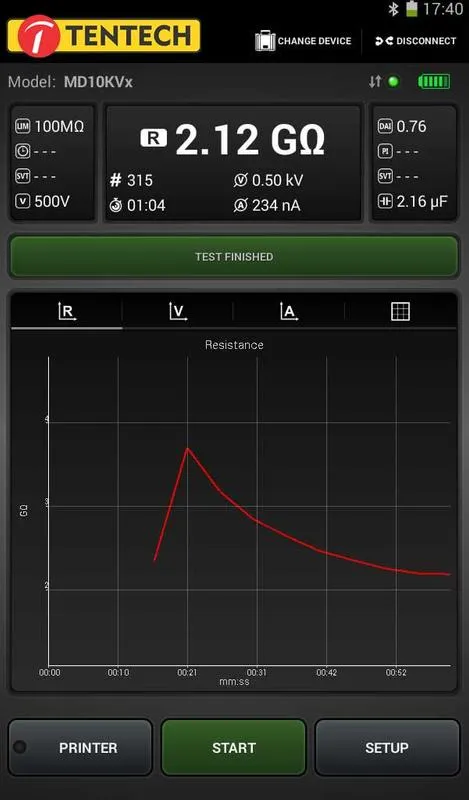

• Remote control through an Android app
• Automated tests
• Absorption index
• Polarization index
• Capacitance
• Leakage current

• AC/DC voltmeter
• Step Voltage test
• Real time clock and calendar
• Built-in printer
• 16,000 readings memory
• Software for data management
• LFP rechargeable battery installed (with expected lifetime in exceed of 10 years on average 2000 charge/discharges cycles)

Supplied with:

• 2 Measuring test leads.
• 1 GUARD test lead.
• 1 AC adapter.
• 1 USB Cable.
• 1 Protective bag.
• 1 User guide.
• 1 MegaLogg2 software.
