Description:

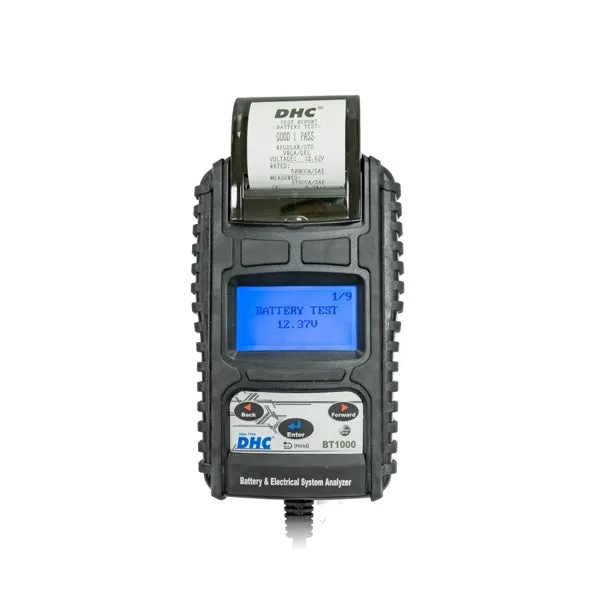

The BT1000 is a versatile and efficient 6V and 12V battery tester and electrical system analyzer, equipped with an integrated thermal printer for easy documentation. Designed for both automotive professionals and DIY enthusiasts, the BT1000 provides comprehensive testing for various battery types, including 12V START-STOP AGM/EFB batteries, and performs 12V and 24V charging and starting system diagnostics. With its 4-color backlit LCD display and customizable printout features, the BT1000 ensures precise readings and clear, detailed reports, making it an essential tool for accurate battery and electrical system analysis.

In-Depth Product Breakdown:

Key Features:

• Versatile Testing Capabilities: Supports testing of 6V and 12V batteries, including START-STOP AGM/EFB batteries, and evaluates 12V and 24V charging and starting systems.
• Wide Operating Range: Covers a range from 40 to 2000 CCA (SAE) for comprehensive battery testing.
• Multiple Rating Systems: Compatible with various rating systems including CCA/SAE, DIN, CA/MCA, EN, IEC, and JIS.

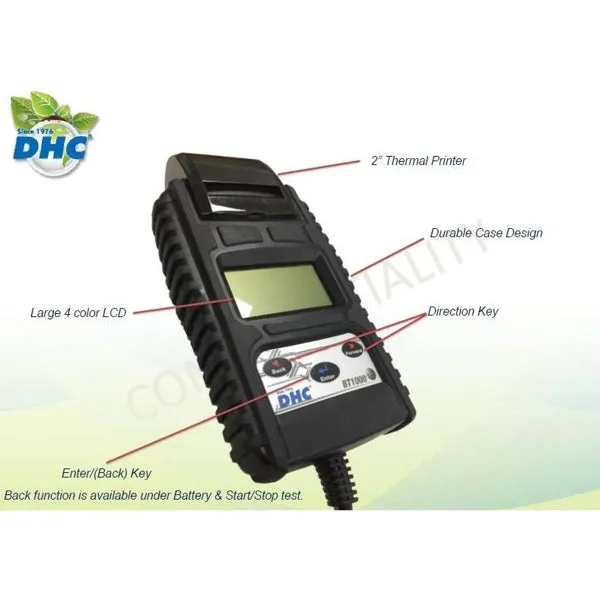

• 4-Color Backlit Display: Features a 4-line, 16-character LCD with adjustable brightness for clear and easy-to-read results.
• Integrated Thermal Printer: Allows for immediate printing of test results, including customized and readable barcodes (Code 39).

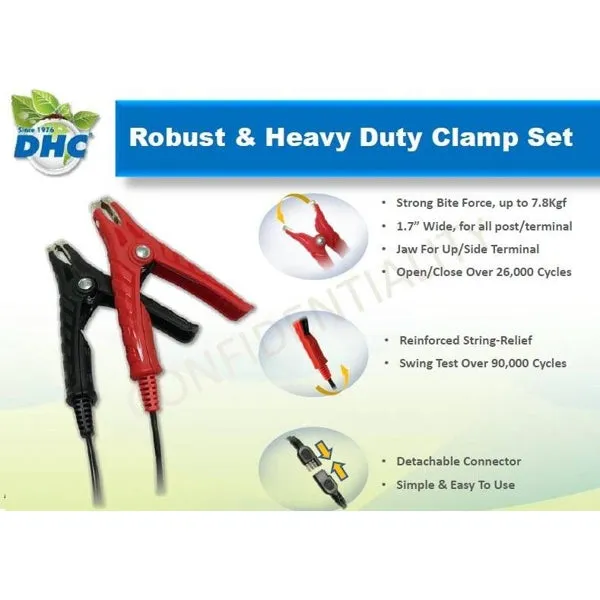

• Detachable Test Lead: Comes with a 70-inch (180 cm) detachable test lead for flexible use.
• Date/Time Function: Includes date and time functionality for accurate record-keeping.
• Temperature Compensation: Provides temperature compensation for precise battery testing.
• Customizable Printouts: Offers full customization of printouts with information such as IR/mΩ readings and test codes.
• Multilingual Support: Operates in English, French, Spanish, German, Italian, and Portuguese.

Technical Information:

• Application: 6V & 12V Batteries, 12V START-STOP AGM/EFB Batteries, 12V & 24V Charging/Starting System
• Operating Range: 40 ~ 2000 CCA (SAE)
• Rating System: CCA/SAE, DIN, CA/MCA, EN, IEC, JIS
• Voltmeter Range: 1.5 ~ 30V
• Display: 4 Color Backlit LCD, 4 Lines x 16 Characters, Adjustable Brightness
• Printer: Integrated Thermal Printer
• Test Lead Length: 70 inches (180 cm), Detachable
• Languages: English, French, Spanish, German, Italian, Portuguese
• Accessories Included: 1 roll of printer paper, heavy-duty blow-molded plastic case, 6 AA batteries
• Dimensions: L215 x W130 x H64 mm (approx. 8.5 x 5.1 x 2.5 inches)
